CBSE Class 10 Science Important Questions 2027 (Repeated in Board Exams)

87 question patterns that appeared in two or more of the analysed papers (5 board + 2 sample, 2022–2026). The numbers change; the question does not.

Chemical Reactions and Equations
1. Exothermic vs endothermic classification
Board 2025Board 2026Sample 20251 marks
C6H12O6(aq) + 6O2(g) -> 6CO2(g) + 6H2O(l). The above reaction is an example of - (A) Displacement Reaction (B) Endothermic Reaction (C) Exothermic Reaction (D) Neutralisation Reaction
2. Name reaction type with justification
Board 2024Sample 20252 marks
Identify the type of each of the following reactions stating the reason for your answers. A. Fe2O3 + 2Al -> Al2O3 + 2Fe + heat B. Pb(NO3)2 + 2KI -> PbI2(down-arrow) + 2KNO3
3. Find coefficients to balance equation
Board 2023Sample 20251 marks
Identify 'p', 'q' and 'r' in the following balanced reaction: p Pb(NO3)2(s) --Heat--> q PbO(s) + r NO2(g) + O2(g) A. 2,2,4 B. 2,4,2 C. 2,4,4 D. 4,2,2
4. Gas ratio in electrolysis of water
Board 2025Board 20261 marks
The volume ratio of hydrogen and oxygen gases liberated during electrolysis of water is (A) 1 : 1 (B) 2 : 1 (C) 4 : 1 (D) 1 : 2
5. Identify a decomposition reaction
Board 2023Board 20241 marks
Select from the following a decomposition reaction in which source of energy for decomposition is light: (a) 2FeSO4 -> Fe2O3 + SO2 + SO3 (b) 2H2O -> 2H2 + O2 (c) 2AgBr -> 2Ag + Br2 (d) CaCO3 -> CaO + CO2
6. Identify oxidised/reduced species or agents
Board 2023Board 20241/3 marks
MnO2 + 4HCl -> MnCl2 + 2H2O + Cl2. The reaction given above is a redox reaction because in this case: (a) MnO2 is oxidised and HCl is reduced. (b) HCl is oxidised. (c) MnO2 is reduced. (d) MnO2 is reduced and HCl is oxidised.
Acids, Bases and Salts
7. Interpret/rank solutions by pH value
Board 2025Board 2026Sample 20261 marks
[case context] pH scale predicts strength of acids and bases via hydrogen ion concentration. Three solutions A, B and C showed pH as 3, 5 and 7. Which solution has the highest concentration of H^+ ions?
8. Deduce acid/base nature from indicator/litmus
Board 2026Sample 20251 marks
An aqueous solution turns red litmus blue. Excess addition of which of the following solution would reverse the change? (A) Sodium hydroxide (B) Hydrochloric acid (C) Baking soda (D) Slaked lime
9. Electrolysis of brine: products/process
Board 2025Sample 20251/2 marks
[Case: Seawater contains many dissolved salts; common salt is separated from these, deposits of solid rock salt (brown due to impurities) are mined like coal, and common salt is an important raw material for chemicals of daily use.] Write balanced chemical equations to show the products formed during electrolysis of brine.
10. CO2 in lime water: milky then colourless
Board 2023Sample 20261 marks
When excess of carbon dioxide is passed through lime water, the milkiness disappears because A. water soluble calcium carbonate converts to water soluble calcium bicarbonate. B. insoluble calcium carbonate converts to water soluble calcium bicarbonate. C. water soluble calcium carbonate converts to insoluble calcium bicarbonate. D. insoluble calcium carbonate converts to insoluble calcium bicarbonate.
11. Baking soda to washing soda from uses
Board 2025Board 20262 marks
(a) A compound 'A' is used in soda-lime fire-extinguisher and decomposes on heating to form compound 'B'. Compound 'B' is used for removing permanent hardness of water. Identify 'A' and 'B'. (b) Write chemical formula of Plaster of Paris. At what temperature gypsum is heated to obtain Plaster of Paris?
12. Apply pH to everyday life / acid strength
Board 2023Board 20243 marks
(i) The pH of a sample of tomato juice is 4.6. How is this juice likely to be in taste? Give reason to justify your answer. (ii) How do we differentiate between a strong acid and a weak base in terms of ion-formation in aqueous solutions? (iii) The acid rain can make the survival of aquatic animals difficult. How?
Metals and Non-metals
13. Write metal-extraction reactions from ores
Board 2026Sample 20253 marks
(i) Which method will be used to convert each of them to their respective metal oxides? (a) Carbonate ore (b) Sulphide ore. (ii) Write a chemical reaction to illustrate the use of aluminium for joining cracked railway tracks. (iii) During extraction of metals, electrolytic refining is used to obtain pure metals. Which material will be used as anode and cathode for the refining of copper metal by this process?
14. Identify amphoteric oxides
Board 2023Board 2024Sample 20261 marks
Four statements about the reactions of oxides with dilute hydrochloric acid and aqueous sodium hydroxide are listed. I. Aluminium oxide reacts with both dilute hydrochloric acid and aqueous sodium hydroxide. II. Calcium oxide reacts with dilute hydrochloric acid and aqueous sodium hydroxide. III. Zinc oxide reacts with both dilute hydrochloric acid and aqueous sodium hydroxide. IV. Sulphur dioxide does not react with either dilute hydrochloric acid or aqueous sodium hydroxide. Which statements are correct? A. I and II B. I and III C. II and IV D. III and IV
15. Displacement when metal dipped in salt solution
Board 2023Board 2024Sample 20261/2 marks
An iron nail is added to each of the two test tubes 'P' and 'Q' containing aqueous copper (II) sulphate, and aqueous silver nitrate respectively. Which of the following observation is correct? A. In test tube 'P' iron nail is coated with a blue coating and in test tube 'Q' there is no reaction. B. Iron nail is coated with a brown coating in test tube 'P' and silver coating in test tube 'Q'. C. There is no reaction in either of the test tubes 'P' or 'Q'. D. There is no reaction in test tube 'P' but a silver coating on iron nail is seen in test tube 'Q'.
16. Electrolytic extraction of reactive metals
Board 2025Sample 20261/3 marks
An element 'X' is stored in kerosene, and cannot be extracted from its ore using a reducing agent. 'X' forms an ionic compound on reaction with chlorine. (i) Can we store 'X' in water? Give reason to support your answer. (ii) Identify element 'X'. Name the process used and write the equation for extraction of 'X' from its ore.
17. Ionic compound formation from electronic structures
Board 2025Sample 20261/5 marks

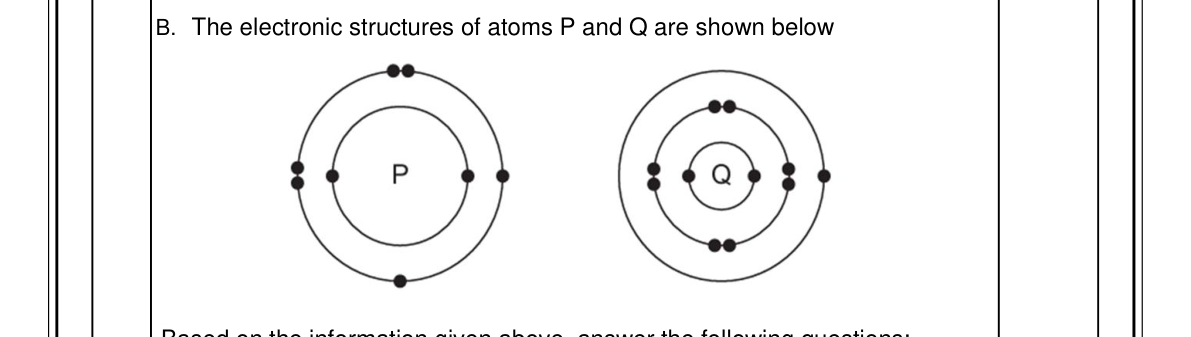

The electronic structures of atoms P and Q are shown in the given figure. Based on the information given above, answer the following questions: (a) If P and Q combine to form a compound, what type of bond is formed between them? (b) Give the chemical formula of the compound formed. (c) The compound so formed is dissolved in water. Is the resultant solution acidic or basic in nature? Justify your answer. (d) Write the chemical equation for the reaction between 'Q' and ethanol. (e) What will be the formula of the compound formed when 'P' undergoes bonding with carbon?
diagram for Ionic compound formation from electronic structures
18. Metal reactivity with cold water
Board 2025Board 20261/3 marks
Which one of the following metals does not react with cold water? (A) Sodium (B) Potassium (C) Calcium (D) Magnesium
19. Metal + oxygen gives which oxide
Board 2023Board 20251 marks
The products formed when Aluminium and Magnesium are burnt in the presence of air respectively are : (A) Al3O4 and MgO2 (B) Al2O3 and MgO (C) Al3O4 and MgO (D) Al2O3 and MgO2
Carbon and its Compounds
20. Ethanol identification and dehydration/reactions
Board 2023Board 2024Board 20255 marks
(i) A carbon compound X is a good solvent. On reaction with sodium, X forms two products Y and Z. Z is used to convert vegetable oil into vegetable ghee. Identify and name X, Y and Z. Also write the equation of reaction of X with sodium to justify your answer. (ii) Write chemical equation to show what happens when ethanol: (I) burns in oxygen/air. (II) is heated at 443 K in excess conc. H2SO4. (III) reacts with acidified potassium dichromate.
21. Micelle/cleansing action and soap vs detergent
Board 2023Sample 20255 marks
Attempt either option A or B. B. (i) 'A' & 'B' are sodium salts of long-chain carboxylic acid and long chain Sulphonic acid respectively. Which one of A or B will you prefer as a cleansing agent while using underground water (hand pump water)? Give the reason for your answer. (ii) Elaborate on the process of cleansing action. Illustrate micelle with the help of labelled diagram. (iii) Write the chemical equation of the preparation of soap from an ester CH3COOCH3. What is the name of this process?
22. Name structures and write reactions incl. esterification
Board 2025Board 20265 marks
(i) How would you name the following: I. CH3-CH2-C(=O)H (i.e. CH3-CH2-CHO); II. CH3-C≡CH. (ii) When ethanol reacts with ethanoic acid in the presence of conc. H2SO4, a substance with sweet smell is produced. Answer the following: I. State the class of compounds to which the sweet smelling compounds belong. II. Write the chemical equation for the reaction. (iii) Why soaps do not produce foam with hard water?
23. Homologous series and melting/boiling trend
Board 2024Board 20265 marks
(i) Carbon cannot form C4+ cation and C4- anion. Explain. (ii) Define homologous series of carbon compounds. Why are the melting and boiling points of C4H10 higher than C3H8 or C2H6? (iii) What happens when ethanol is heated with acidified potassium dichromate?
24. Physical properties of covalent compounds
Board 2022Board 20241/2 marks
Carbon compounds: (i) are good conductors of electricity. (ii) are bad conductors of electricity. (iii) have strong forces of attraction between their molecules. (iv) have weak forces of attraction between their molecules. The correct statements are: (a) (i) and (ii) (b) (ii) and (iii) (c) (ii) and (iv) (d) (i) and (iii)
Life Processes
25. Aerobic vs anaerobic glucose breakdown (products/sites/ATP)
Board 2023Board 2025Sample 2025Sample 20261/2 marks
Which of the following options indicates the products formed after breakdown of the glucose in our muscle cells when there is lack of oxygen? A. Ethanol + carbon dioxide + Energy B. Lactic acid + Energy C. Lactic acid + carbon monoxide + Energy D. Carbon dioxide + Water + Energy
26. Mechanism of water transport (soil to leaves)
Sample 2025Sample 20262/3 marks
Explain the mechanism by which the water is transported in plants.
27. Photosynthesis steps and desert-plant adaptation
Board 2023Board 2025Sample 20252/3 marks
[Case: Maintenance functions require energy from food prepared by autotrophs.] State in proper sequence the events that occur in synthesis of food by desert plants.
28. Heart chamber that pumps oxygenated blood
Board 2026Sample 20251 marks
In human beings the oxygen rich blood is pumped out to the body by: (A) contraction of right atrium (B) relaxation of left ventricle (C) contraction of right ventricle (D) contraction of left ventricle
29. Role of digestive substances/enzymes
Board 2024Sample 20252 marks
Attempt either option A or B. B. Explain the role of the following enzymes in the process of digestion of food in humans: (i) Salivary amylase (ii) Pepsin (iii) Trypsin (iv) Lipase
30. Balanced equation and events of photosynthesis
Board 2025Board 20261/5 marks
(a) Draw a labelled diagram showing open and closed stomatal pore. (b) List the main events that occur during the process of photo-synthesis. (c) Write a balanced chemical equation showing photo-synthesis in plants.
31. Saprophytic (extracellular) nutrition identification
Board 2023Board 20261 marks

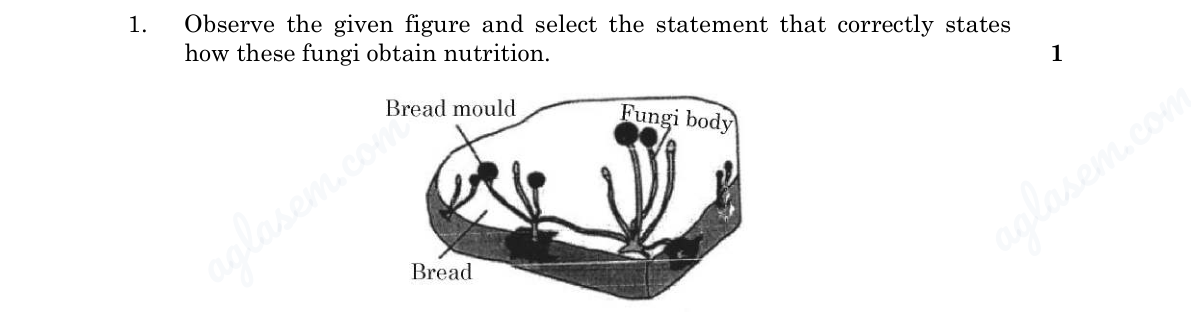

Observe the given figure and select the statement that correctly states how these fungi obtain nutrition. (A) By eating the bread on which it is growing. (B) By using nutrients from the bread to prepare their own food. (C) By breaking down the nutrients of bread outside the body and then absorbing them. (D) By allowing other organisms to grow on the bread and then consuming them.
diagram for Saprophytic (extracellular) nutrition identification
32. Nephron structure and function
Board 2023Board 20262/5 marks
(a) Draw a well-labelled diagram of nephron and label atleast 4 of its parts. (b) Write the role of capillary cluster inside Bowman's capsule. (c) What is meant by selective reabsorption?
33. Blood clotting to prevent blood loss
Board 2023Board 20251/2 marks
Besides minimising the loss of blood, why is it essential to plug any leak in a blood vessel ? Name the component of blood which helps in this process and state how this component performs this function.
Control and Coordination
34. Brain parts and their functions
Board 2026Sample 2025Sample 20261 marks
Following are the statements about the different parts of the brain. Select the correct statements. (i) The thinking part of the brain is the forebrain. (ii) Centres for smell, hearing, memory, sight are located in forebrain. (iii) Salivation, vomiting, blood pressure are controlled by medulla in the hind brain. (iv) Cerebellum does not control the posture and balance of the body. (A) (i), (ii) and (iii) (B) (ii), (iii) and (iv) (C) (i), (ii) and (iv) (D) (i), (iii) and (iv)
35. Auxin and phototropic bending of shoots
Board 2025Board 2026Sample 20251/2 marks
[case context] Plants show movements in response to environmental stimuli regulated by plant hormones. What role does auxin play in the growth of plants?
36. Differentiate nastic (sensitive-plant) movement from tropic movement
Board 2024Board 2025Board 20262/3 marks
[case context] Plants show movements in response to environmental stimuli regulated by plant hormones. Differentiate between movement shown by the sensitive plant and tropic movement by plants (Two points).
37. Neuron structure and impulse transmission
Board 2024Sample 20261/3 marks
Draw and explain how the nerve cells help in transmission of impulses?
38. Insulin, blood sugar regulation and diabetes
Board 2023Sample 20261/2 marks
The blood glucose level in a patient was very high. It may be due to inadequate secretion of: A. growth hormone from pituitary gland B. oestrogen from ovary C. insulin from pituitary gland D. insulin from pancreas
39. Define reflex action and show the reflex arc
Board 2024Board 20262/3 marks
Sunil unconsciously touched the hot iron rod and immediately withdrew his hand. Which type of action is involved? Also define this action. Draw a flow chart to show the path followed for this action.
How do Organisms Reproduce
40. Vegetative propagation of banana and variation
Sample 2025Sample 20265 marks
Puneet wanted to grow banana plants. (i) Based on your knowledge on plant reproduction should he opt for seeds or any alternate method of reproduction? Justify your answer. (ii) Offsprings of a banana plant usually show very little variation. What causes variation and are variations good or bad? Justify.
41. Draw/describe Hydra budding or Rhizopus spore formation
Board 2024Board 20252/5 marks
Draw labelled diagrams to show different stages of budding in Hydra.
42. Differentiate self vs cross pollination (with flower parts/diagram)
Board 2023Board 20255 marks

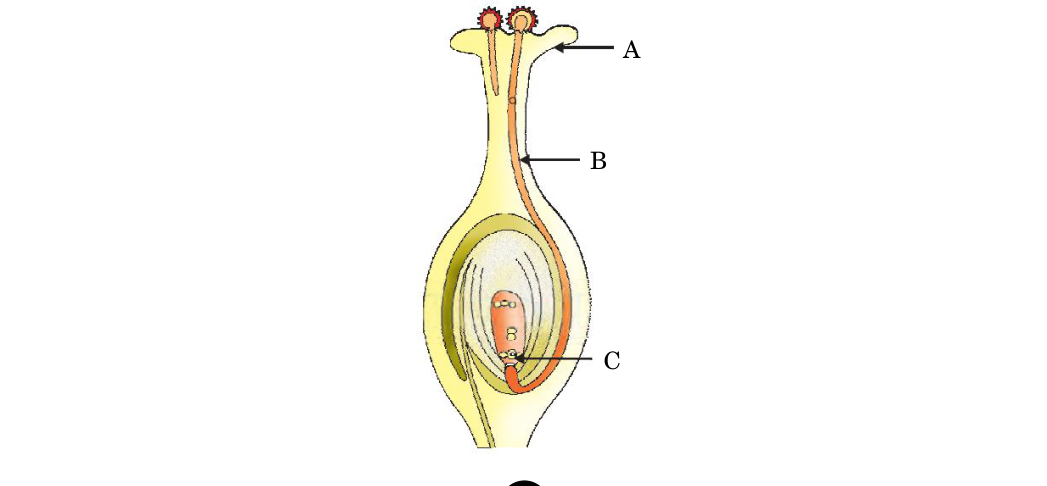

(i) Differentiate between self-pollination and cross-pollination. (ii) Identify A, B and C in the diagram given below (a diagram of a flower/pistil showing pollen germination and the ovule - see figure) and write one function of each.
diagram for Differentiate self vs cross pollination (with flower parts/diagram)
43. Functions of reproductive organs
Board 2022Board 20253/5 marks
(i) Write the functions of the following parts of human female reproductive system: (I) Ovary (II) Fallopian tube (III) Uterus. (ii) State briefly two contraceptive methods used by human males.
44. Identify organism by asexual mode + example
Board 2022Board 20241/2 marks
In which of the following organisms, multiple fission is a means of asexual reproduction? (a) Yeast (b) Leishmania (c) Paramoecium (d) Plasmodium
Heredity
45. Dihybrid cross F1/F2 combinations and ratio
Board 2023Board 2024Board 2025Board 20261/2 marks
Two pea plants, one with round green seeds (RRyy) and another with wrinkled yellow (rrYY) seeds were crossed with each other which produced F1 progeny that have only round yellow (RrYy) seeds. When F1 plants are self-pollinated, the F2 progeny will have which new combination of characters, as compared to the parents: (i) Round, yellow (ii) Round, green (iii) Wrinkled, yellow (iv) Wrinkled, green. Correct options are: (A) (i) and (ii) (B) (i) and (iv) (C) (ii) and (iv) (D) (i) and (iii)
46. Construct a monohybrid cross and show F1/F2 ratios
Board 2023Board 2026Sample 20252/3 marks
Study the given table and answer the following questions: [Parents: A pea plant with red flowers was crossed with a pea plant with white flowers. | F1: 30 seeds were sown and all bore plants with red flowers. | F2: 44 seeds were sown, 33 plants bore red flowers and 11 plants bore white flowers.] (a) Depict the information given in the table in the form of a cross. (b) Deduce the F2 phenotypic ratio / F2 ratio showing external look as well as genotypic/genetic makeup, ratio.
47. Environmental (non-genetic) sex determination
Board 2022Sample 20251/2 marks
In snails individuals can begin life as male and depending on environmental conditions they can become female as they grow. This is because A. male snails have dominant genetic makeup. B. female snails have dominant genetic makeup. C. expression of sex chromosomes can change in a snail's life time. D. sex is not genetically determined in snails.
48. Correct statements about genes/chromosomes
Board 2023Board 20241 marks
Chromosomes: (i) carry hereditary information from parents to the next generation. (ii) are thread like structures located inside the nucleus of an animal cell. (iii) always exist in pairs in human reproductive cells. (iv) are involved in the process of cell division. The correct statements are: (a) (i) and (ii) (b) (iii) and (iv) (c) (i), (ii) and (iv) (d) (i) and (iv)
49. Differentiate dominant vs recessive traits
Board 2023Board 20241 marks
[case context: Mendel's experiments on inheritance in garden pea.] Write one difference between dominant and recessive trait.
50. Sex determined by father / at fertilisation
Board 2023Board 20241 marks
Consider the following statements: (i) The sex of a child is determined by what it inherits from the mother. (ii) The sex of a child is determined by what it inherits from the father. (iii) The probability of having a male child is more than that of a female child. (iv) The sex of a child is determined at the time of fertilisation when male and female gametes fuse to form a zygote. The correct statements are: (a) (i) and (iii) (b) (ii) and (iv) (c) (iii) and (iv) (d) (i), (iii) and (iv)
Light - Reflection and Refraction
51. Solve lens formula/magnification for the unknown
Board 2025Sample 20262 marks

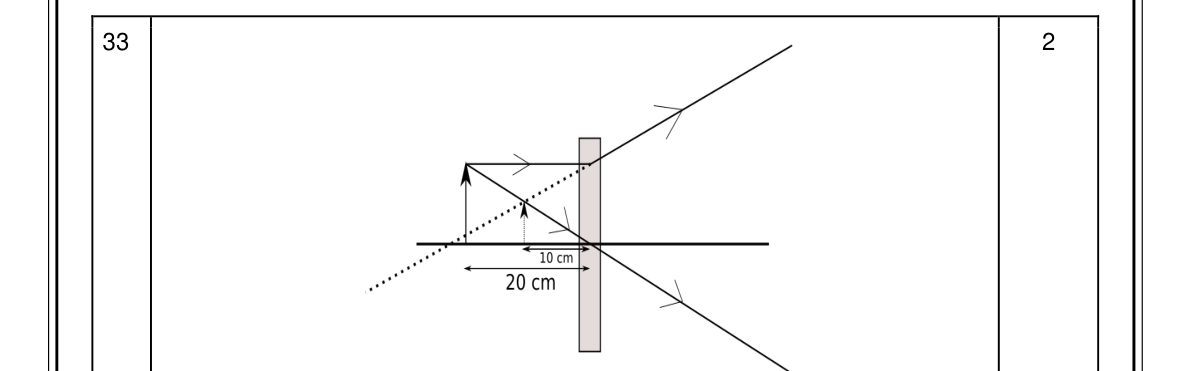

The given figure shows the formation of an image with an optical instrument (shown schematically as a rectangle); an upright object forms an image with the distances 10 cm and 20 cm marked. A. Identify the optical instrument (shown schematically as a rectangle) in the image. B. What type of image is formed in this case? C. Based on the measurements given in the image, calculate the focal length of the instrument. (For visually impaired students: A. Under what conditions can a convex lens form a virtual image? B. Why does a piece of paper catch fire if we allow sunlight to pass through a convex lens onto the paper?)
diagram for Solve lens formula/magnification for the unknown
52. Image nature for concave vs convex mirror (MCQ)
Board 2025Sample 20261 marks
Arnav was making notes and he wrote down the following statements from his understanding of reflection from curved surfaces. I. Concave mirrors can produce both real and virtual images depending on the position of the object. II. Convex mirrors always produce real, inverted images regardless of the object's position. III. In both concave and convex mirrors, the image location can be determined using the mirror formula 1/f = 1/v + 1/u where f is the focal length, v is the image distance, and u is the object distance. Choose from the following the correct option that lists the correct statements about reflection from curved surfaces. A. I and II B. I, II and III C. II and III D. I and III
53. Optical device at telescope eyepiece
Board 2026Sample 20252 marks
[case context] A reflecting telescope uses curved mirrors and a plane mirror to form an image at the eye-piece. Explain with the reason, what kind of optical device (type of lens or mirror) is used at the eye-piece.
54. Nature of image of star in reflecting telescope
Board 2026Sample 20251 marks

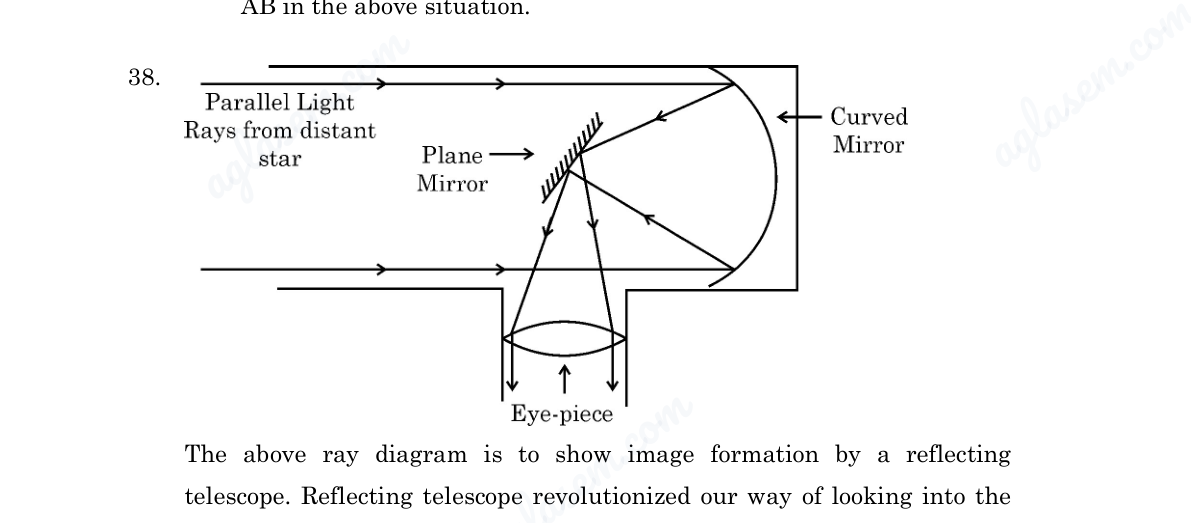

[case context] A ray diagram shows image formation by a reflecting telescope, which uses large precisely-shaped curved mirrors (and a plane mirror) to gather and focus incoming light to a focal point where the image is formed for observation at the eye-piece. What kind of image of a star is seen by the observer in the eye-piece?
diagram for Nature of image of star in reflecting telescope
55. Type of mirror in reflecting telescope
Board 2026Sample 20251 marks
[case context] A ray diagram shows image formation by a reflecting telescope that uses large curved mirrors to gather and focus light. What kind of mirror is used in this reflecting telescope?
56. Role of plane mirror in reflecting telescope
Board 2026Sample 20252 marks
[case context] A reflecting telescope uses curved mirrors and a plane mirror to form an image. OR alternative for (c): What is the role of plane mirror in image formation by this telescope?
57. Draw/complete ray diagram and describe mirror image
Board 2023Board 20252/3 marks
Draw ray diagrams to show the nature, position and relative size of the image formed by a convex mirror when the object is placed (i) at infinity and (ii) between infinity and pole P of the mirror.
58. Mirror formula numerical (find unknown)
Board 2023Board 20242 marks
An object is placed at a distance of 10 cm from a convex mirror of focal length 15 cm. Find the position of the image formed by the mirror.
The Human Eye and the Colourful World
59. Identify a vision defect and show its correction
Board 2023Board 2024Sample 2025Sample 20262/3 marks

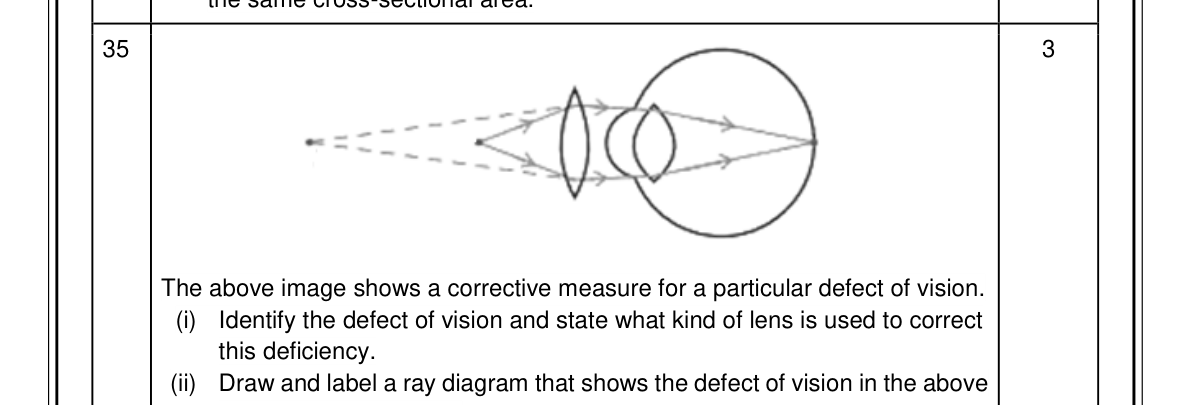

The given figure shows a corrective measure for a particular defect of vision. (i) Identify the defect of vision and state what kind of lens is used to correct this deficiency. (ii) Draw and label a ray diagram that shows the defect of vision in the above case before correction. (For visually impaired students: (i) What is dispersion of light? (ii) Explain the condition under which dispersion happens? (iii) Give one reason that causes presbyopia.)
diagram for Identify a vision defect and show its correction
60. Explain scattering / atmospheric optical phenomena
Board 2023Sample 20261/3 marks
Choose the correct option from the below which explains the reason for us to perceive the day sky as blue. A. As sunlight passes through the atmosphere, shorter wavelengths, such as blue are scattered more than other colors. B. The sky appears blue because all colors are scattered equally, but blue light is stronger and more visible to the human eye. C. The blue color of the sky is due to longer wavelengths like red and orange scattering more than shorter wavelengths, making blue stand out more. D. The atmosphere contains blue-colored particles that give the sky its blue appearance.
61. Prism dispersion: ray path / emergent colours
Board 2023Sample 20251/2 marks

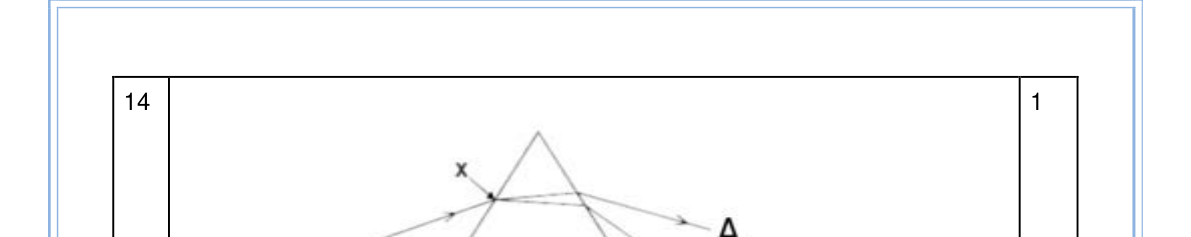

White light is incident on a glass prism; ray x enters and two emergent rays A (upper) and B (lower) leave the prism. Choose the correct option for the colour of rays for A and B. A. Ray A Blue, Ray B Red B. Ray A Green, Ray B Yellow C. Ray A Red, Ray B Violet D. Ray A Violet, Ray B Indigo
diagram for Prism dispersion: ray path / emergent colours
62. Presbyopia from ciliary-weakening description (MCQ)
Board 2025Board 20261 marks
The vision defect which arises due to gradual weakening of the ciliary muscles and diminishing flexibility of eye lens is: (A) Myopia (B) Hypermetropia (C) Presbyopia (D) Myopia and hypermetropia both
63. Identify eye part by its function (MCQ)
Board 2024Board 20261 marks
The pair of eye parts responsible for admitting different amount of light in to the eyes is (A) Iris and pupil (B) Ciliary muscles and pupil (C) Retina and Iris (D) Ciliary muscles and cornea
64. Rainbow formation
Board 2024Board 20261/3 marks
Explain the phenomenon of rainbow formation in the sky. Draw the labelled ray diagram in support of your explanation.
Electricity
65. Calculate unknown resistances/currents/PD in a circuit
Board 2025Board 2026Sample 20253/5 marks

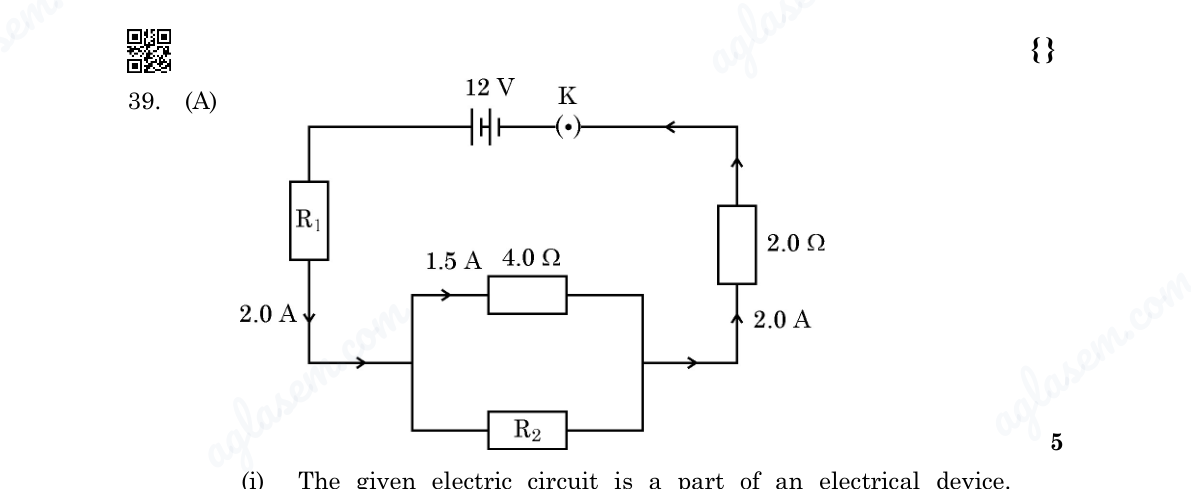

(i) The given electric circuit is a part of an electrical device. Use the information given in the electric circuit diagram to calculate: (I) Potential difference across the ends of resistor R2. (II) Value of resistor R2. (III) Value of resistor R1. [Circuit data: 12 V source with key K; branch with R1; a 4.0 Ohm resistor carrying 1.5 A; resistor R2 in parallel; a 2.0 Ohm resistor; total line current 2.0 A.] (ii) Write the factors on which resistance of a conductor depends and derive the formula for resistance of a given conductor.
diagram for Calculate unknown resistances/currents/PD in a circuit
66. Appliance power numerical (find I/P/R from rating)
Board 2023Board 2024Board 2026Sample 20265 marks
(i) How much electric current will an electric iron draw from 220 V source if the resistance of its heating element when hot, is 55 Ohm? Calculate the power consumed by the electric iron when it is operated at 220 V. (ii) In a house, 3 bulbs of 100 watt each, are lit for 5 hours daily and an electric heater of 1.0 kW is used for half an hour daily. Calculate the total energy consumed in a month of 30 days and its cost at the rate of Rs. 3.60 per kWh. (iii) With reason explain, why are alloys commonly used to make elements of electrical heating devices.
67. Equivalent resistance & current of a resistor network
Board 2022Sample 20262/3 marks

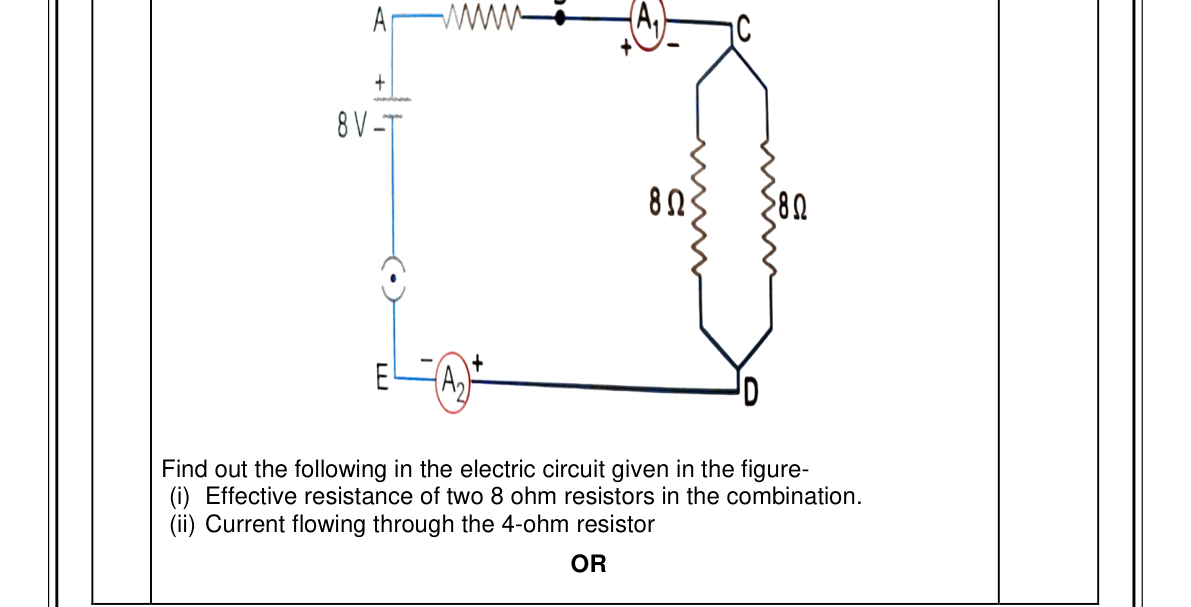

Find out the following in the electric circuit given in the figure (an 8 V cell in series with a 4 ohm resistor and ammeter A1, connected to two 8 ohm resistors joined in parallel between points C and D, with ammeter A2 in the return path): (i) Effective resistance of two 8 ohm resistors in the combination. (ii) Current flowing through the 4-ohm resistor.
diagram for Equivalent resistance & current of a resistor network
68. State R=rhoL/A relation and derive/define resistivity
Board 2024Board 2025Sample 20253/5 marks
(a) Write the relationship between resistivity and resistance of a cylindrical conductor of length l and area of cross-section A. Hence derive the SI unit of resistivity. (b) Why are alloys used in electrical heating devices ?
69. Ratio of resistance/power: series vs parallel
Board 2023Sample 20251/2 marks

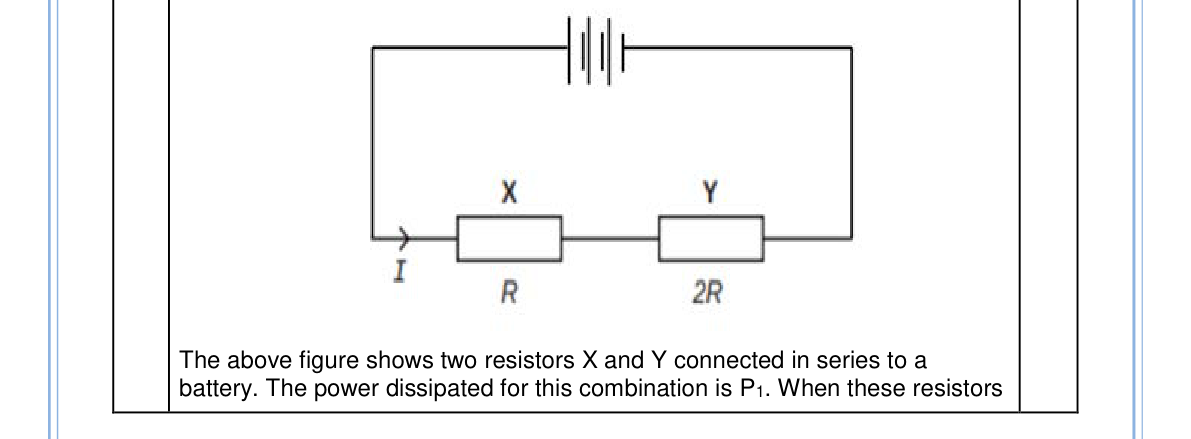

Attempt either option A or B. B. The given figure shows two resistors X (R) and Y (2R) connected in series to a battery. The power dissipated for this combination is P1. When these resistors are connected in parallel to the same battery then the power dissipated is given by P2. Find out the ratio P1/P2.
diagram for Ratio of resistance/power: series vs parallel
70. Current rating / fuse suitability from appliance power
Board 2025Board 20261/2 marks
A fuse in electric circuit is rated 4 A. Can it be used with an electric heater of rating 2 kW, 200 V? Explain your answer.
71. Total current for appliances in parallel
Board 2022Sample 20252/3 marks

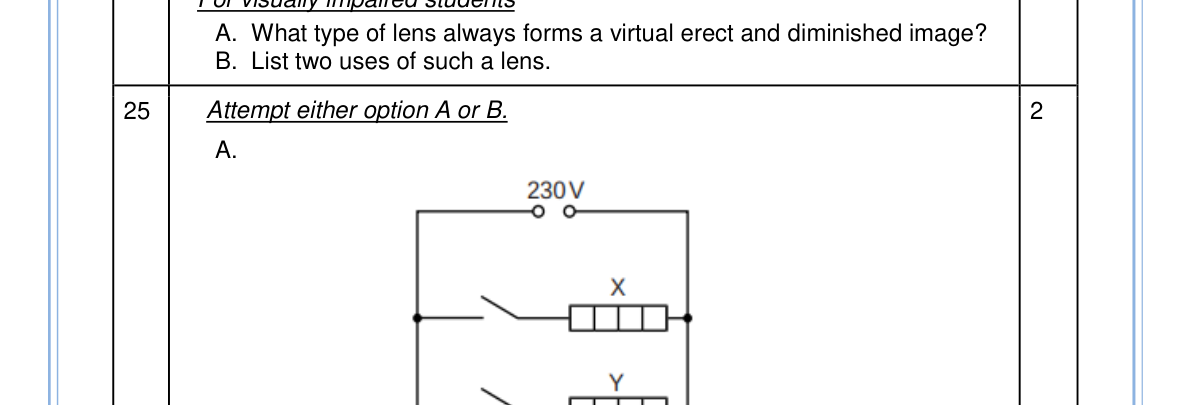

Attempt either option A or B. A. The electric circuit (given figure) in a clothes dryer contains two heaters X and Y in parallel connected to a 230 V power supply. When both switches are closed, the current in X is 3.5 A. Analyse the circuit and answer: (i) Calculate the power developed in heater X. (ii) If the resistance of X is double that of Y calculate the current in heater Y.
diagram for Total current for appliances in parallel
72. Rearrange/combine resistors for a required resistance
Board 2024Board 20252 marks
A wire of resistance R is cut into three equal parts. If these three parts are then joined in parallel, calculate the total resistance of the combination so formed.
73. Heat/power dissipated in a resistor
Board 2022Board 20242/3 marks

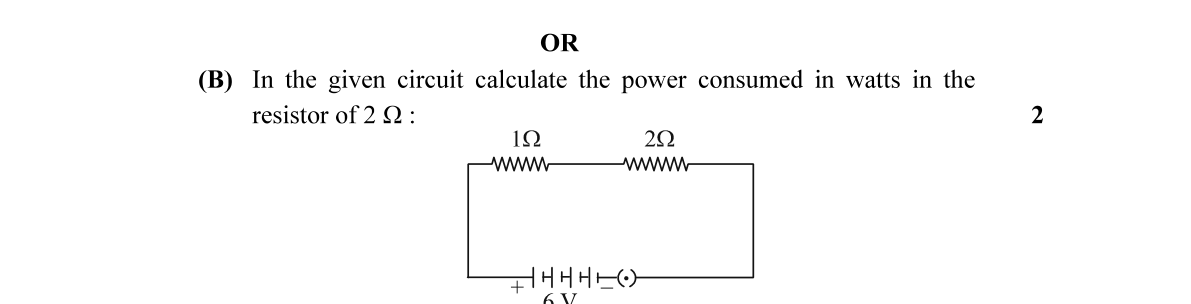

In the given circuit calculate the power consumed in watts in the resistor of 2 ohm: [circuit diagram shows a 1 ohm resistor and a 2 ohm resistor in series with a 6 V battery]
diagram for Heat/power dissipated in a resistor
Magnetic Effects of Electric Current
74. Fleming's Left Hand Rule for force on a conductor
Board 2022Board 2023Board 2024Board 20262/3 marks

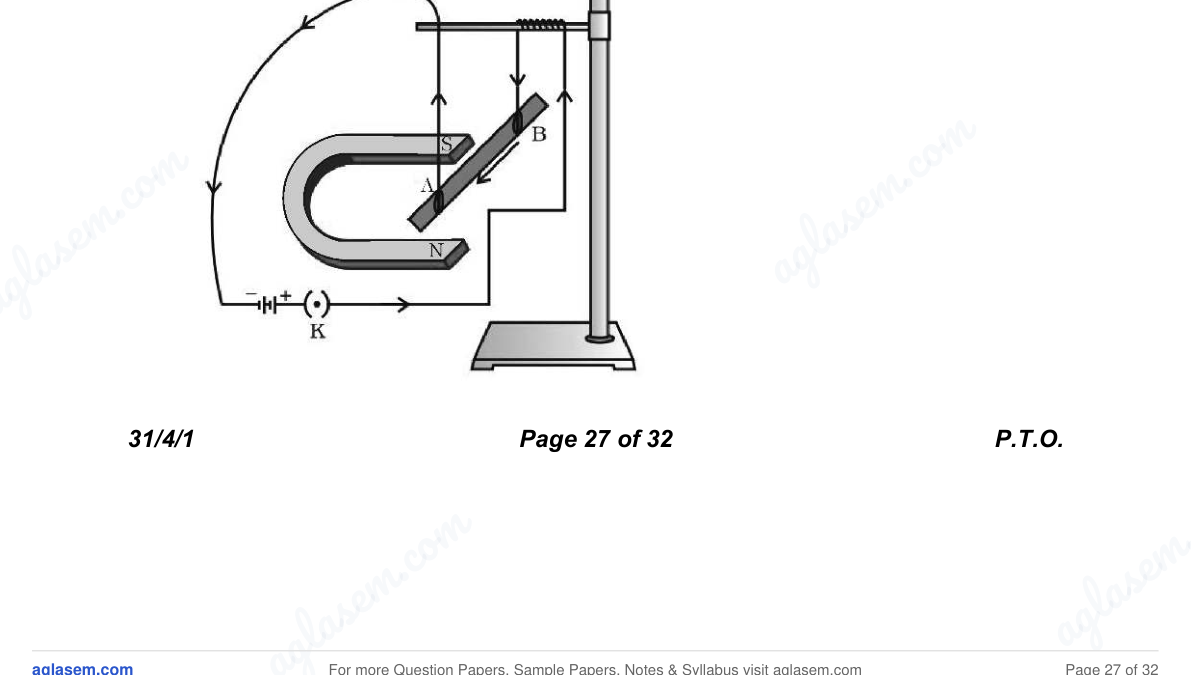

On the basis of the given circuit arrangement, answer the following questions: (a) What happens to the rod AB when the key K is closed and why? (b) Name and state the rule that determines this behaviour of the rod AB in the above situation.
diagram for Fleming's Left Hand Rule for force on a conductor
75. Interpret field strength/direction around wire/loop
Sample 2025Sample 20263 marks

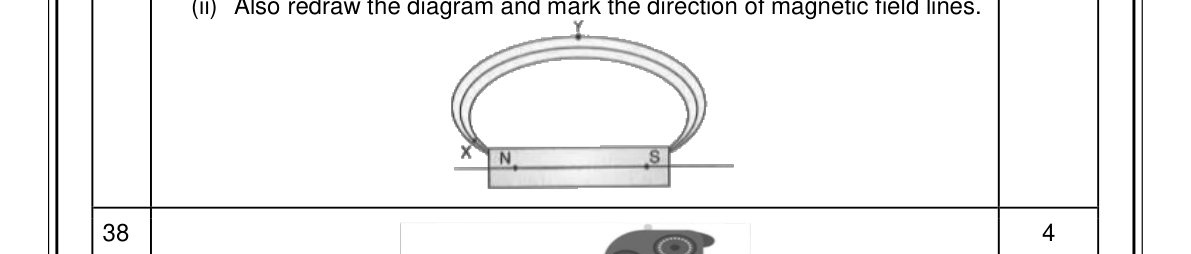

Magnetic field lines are shown in the given diagram (field lines around a current loop with points X and Y marked, near a magnet labelled N-S). A student makes a statement that the magnetic field at X is stronger than at Y. (i) Explain with reason if the student's claim is correct. (ii) Also redraw the diagram and mark the direction of magnetic field lines.
diagram for Interpret field strength/direction around wire/loop
76. Draw magnetic field pattern of a bar magnet (and solenoid)
Board 2022Board 20231/2/3 marks
(i) Draw the pattern of magnetic field lines of (1) a current carrying solenoid (2) a bar magnet. (ii) List two distinguishing features between the two fields.
77. Magnetic field lines do not intersect (reason)
Board 2022Board 2024Board 20251/2 marks
Assertion (A): No two magnetic field lines are found to cross each other. Reason (R): The compass needle cannot point towards two directions at the point of intersection of two magnetic field lines. Select the correct answer: (A) Both A and R are true and R is the correct explanation of A. (B) Both A and R are true, but R is not the correct explanation of A. (C) A is true, but R is false. (D) A is false, but R is true.
78. Increasing magnetic field strength of coil/electromagnet
Board 2023Board 20261/2 marks
How is an electromagnet made? Write any two ways by which the strength of electromagnet can be increased.
79. Solenoid magnetic field pattern (draw/identify)
Board 2022Board 20241/2 marks
The pattern of the magnetic field produced inside a current carrying solenoid is: [four field-pattern diagrams labelled (a), (b), (c), (d) are given as the options]
diagram for Solenoid magnetic field pattern (draw/identify)
Our Environment
80. Biomagnification up trophic levels
Board 2023Board 2024Board 2026Sample 2025Sample 20261/2 marks
Assertion (A): Highest percentage of pesticides is found in tertiary consumers in a food chain. Reason (R): Chemicals / pesticides get accumulated progressively at each trophic level. (A) Both Assertion (A) and Reason (R) are true and Reason (R) is the correct explanation of the Assertion (A). (B) Both Assertion (A) and Reason (R) are true, but Reason (R) is not the correct explanation of the Assertion (A). (C) Assertion (A) is true, but Reason (R) is false. (D) Assertion (A) is false, but Reason (R) is true.
81. Energy flow / 10% law
Board 2025Board 2026Sample 20251/2 marks
Explain why food chains generally consist of three or four steps.
82. Eco-friendly vs harmful human activity (MCQ)
Board 2026Sample 20261 marks
Given below are some of the statements regarding our environment: (i) Change in our life-styles have resulted in greater amounts of waste material generation. (ii) Changes in attitude have resulted in use of more disposable things. (iii) Changes in packaging has resulted in much of our waste becoming non-biodegradable. (iv) Organic farming. Which amongst these is not leading to any damage of environment? (A) (i), (ii), (iii) (B) (iv) (C) (i) and (iii) (D) (ii) and (iv)
83. Construct a food chain / food web
Board 2023Sample 20262/3 marks
About 100 acres of forest land was declared as Natural reserve park. The following organisms were predominant in the Natural reserve park: rabbit, frog, grass, fish, fox, water insects, zebra, peacock, snake, trees, bird, owl, insects, tiger, vulture, duck. Create a food web comprising two separate food chains with different producers by using the above data.
84. Effect of removing a trophic level
Board 2024Sample 20251/3 marks
Assertion (A): If the lions are removed from a food chain it will not affect the food chain, however if the plants are removed from a food chain it will disturb the ecosystem. Reason (R): Plants are producers who can make food using sunlight, while lions are consumers. [Options: A. Both A and R are true, and R is the correct explanation of A. B. Both A and R are true, and R is not the correct explanation of A. C. A is true but R is false. D. A is false but R is true]
85. Identify valid/invalid food chain (MCQ)
Board 2024Board 20251 marks
Which of the following groups do not constitute a food chain ? (i) Wolf, rabbit, grass, lion (ii) Plankton, man, grasshopper, fish (iii) Hawk, grass, snake, grasshopper, frog (iv) Grass, snake, wolf, tiger (A) (i) and (iv) (B) (i) and (iii) (C) (ii) and (iii) (D) (ii) and (iv)
86. Ozone: formation, function and depletion (descriptive)
Board 2022Board 20242/3 marks
A gas 'X' which is a deadly poison is found at the higher levels of atmosphere and performs an essential function. Name the gas and write the function performed by this gas in the atmosphere. Which chemical is linked to the decrease in the level of this gas? What measures have been taken by an international organization to check the depletion of the layer containing this gas?
87. Natural vs artificial ecosystems and their maintenance
Board 2022Board 20232/3 marks
(i) Why does a kitchen garden called an artificial ecosystem while a forest is considered to be a natural ecosystem? (ii) While designing an artificial ecosystem at home, write any two things to be kept in mind to convert it into a self-sustaining system. Give reason to justify your answer.
Share:TelegramX
